Landscaping and construction work
Landscaping Bucket

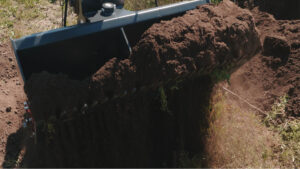

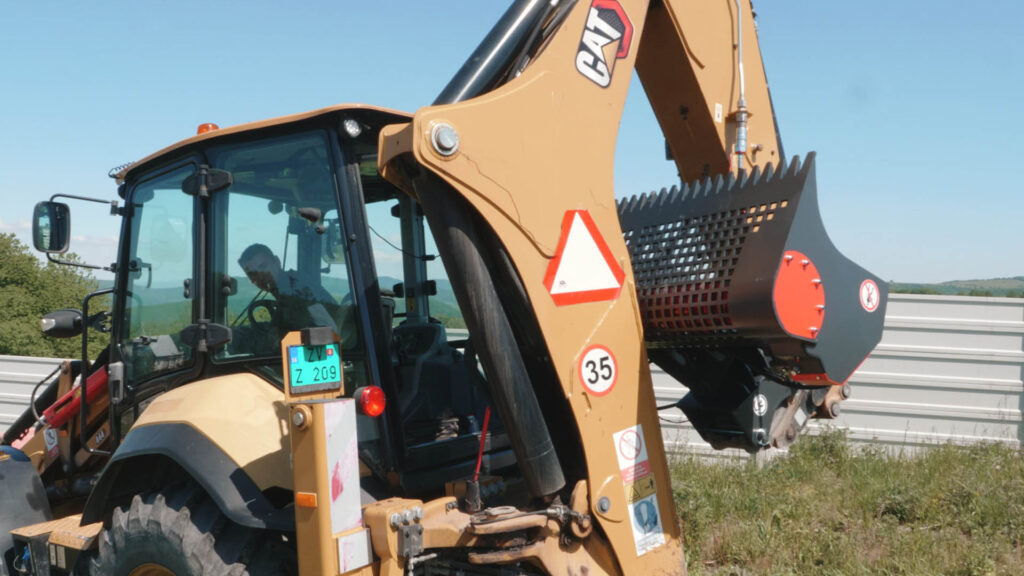

Multi-purpose attachment for final ground finishing. In one pass it clears, screens and levels the ground. The toothed cutting edge breaks up the surface, catching grass tufts and young saplings between the teeth. A hydraulically driven rotor mixes the material — fine soil falls through the perforated back while stones and roots remain in the bucket. The curved back and hydraulic tilting allow spreading, levelling and slope work.
Suitable for finishing after excavation, recultivation, topsoil preparation, clearing of overgrown ground and shaping of embankments and ditches.
Benefits
- Three operations with one attachment — clearing, screening and levelling of the ground
- Toothed cutting edge catches grass tufts and young saplings between the teeth

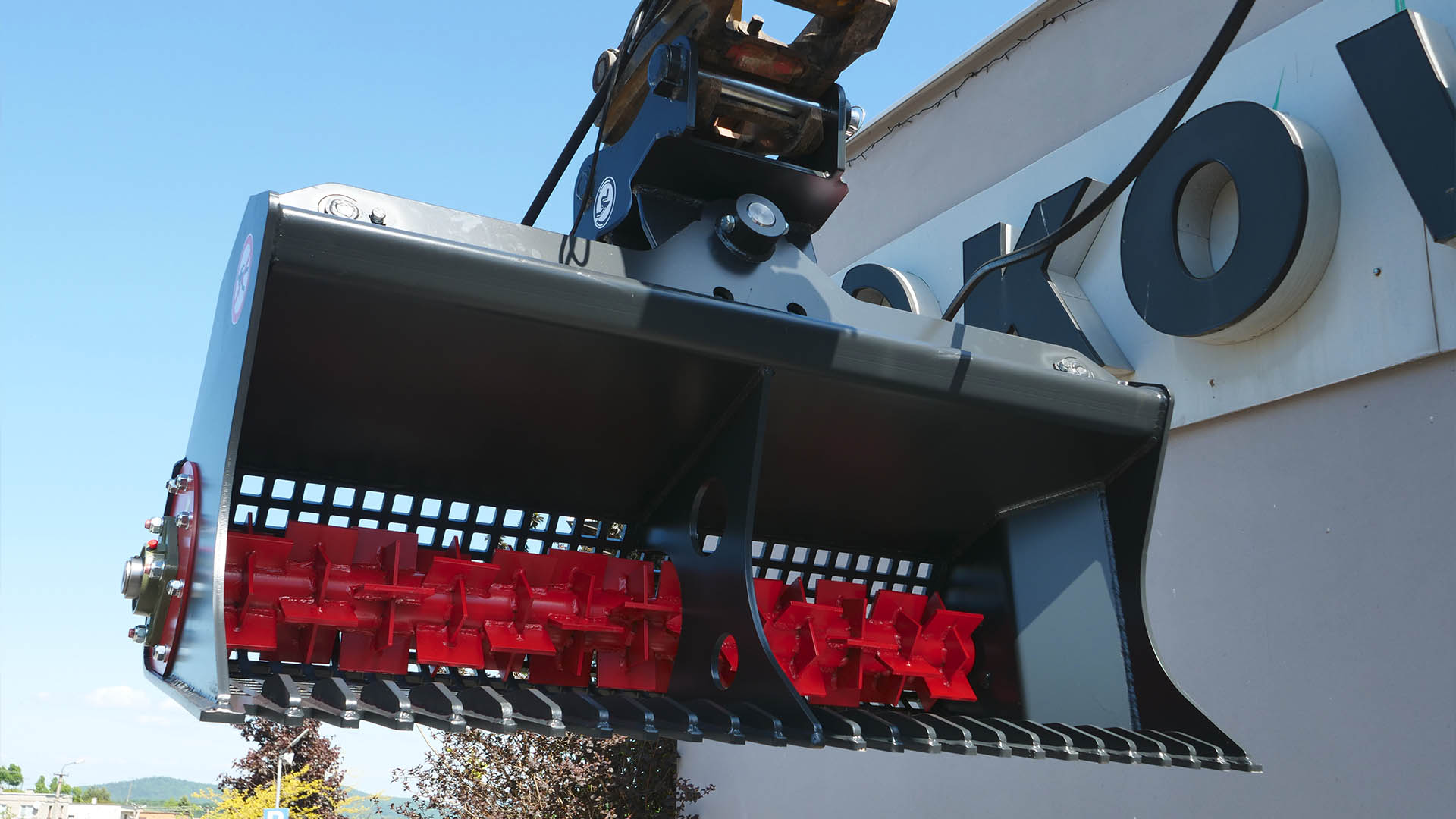

- Hydraulically driven rotor mixes the collected material

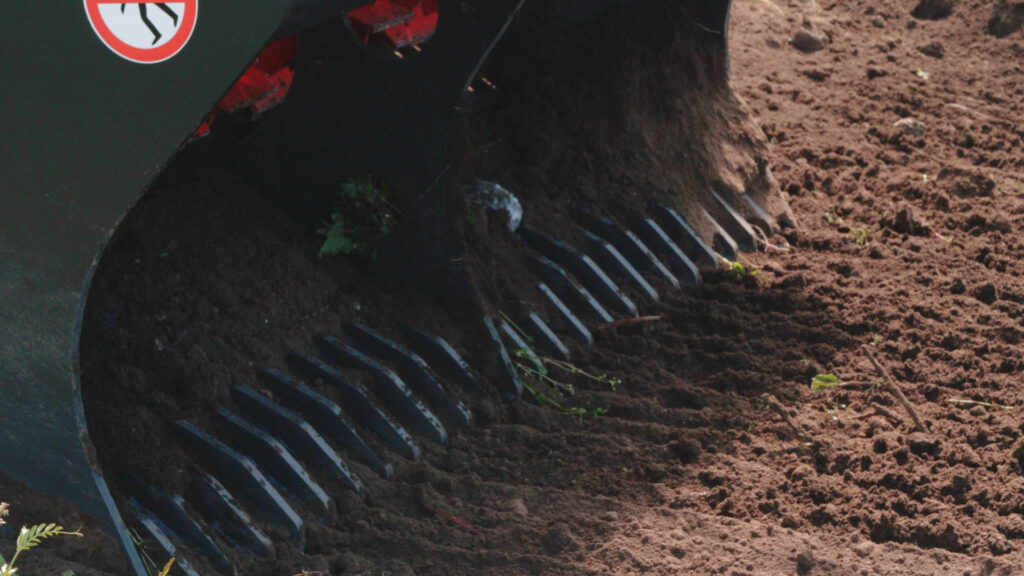

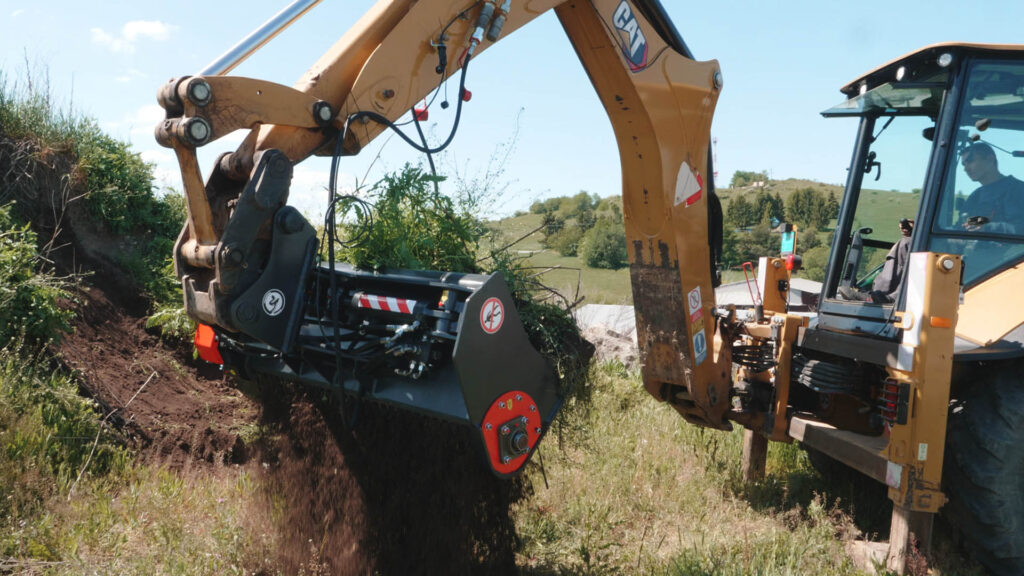

- Stones and roots remain in the bucket, while fine soil falls back onto the ground

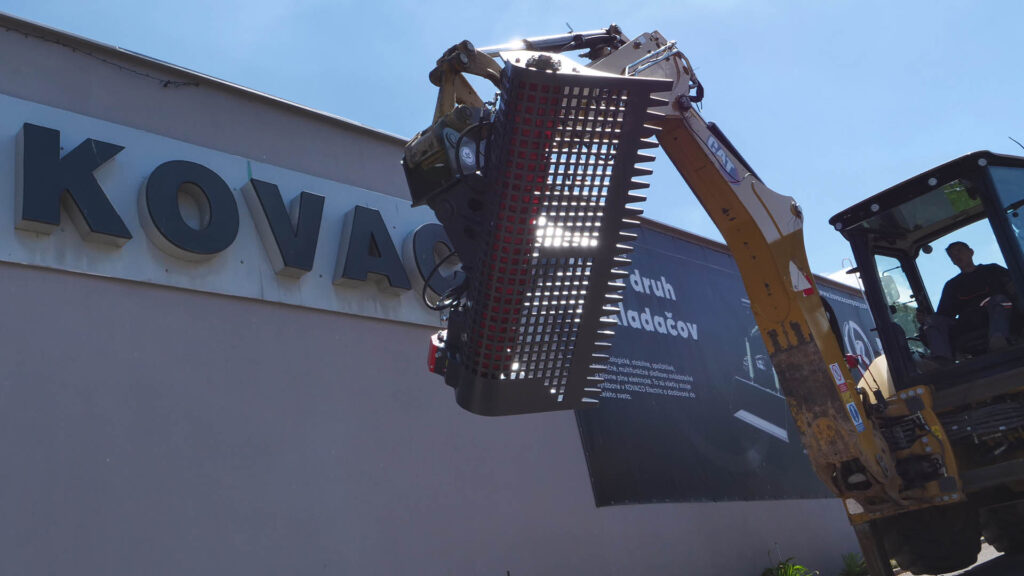

- Curved perforated back for spreading and levelling the screened soil

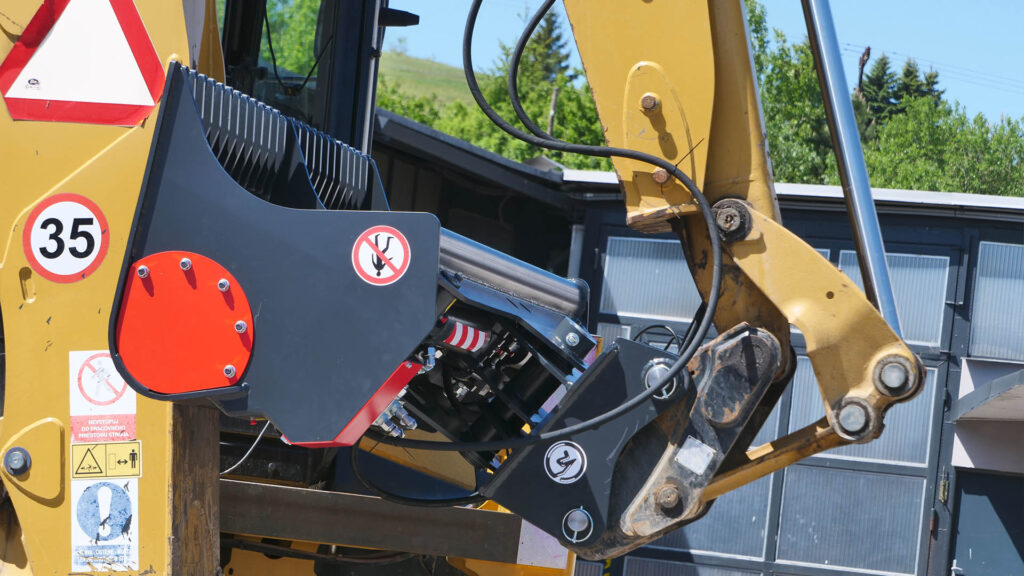

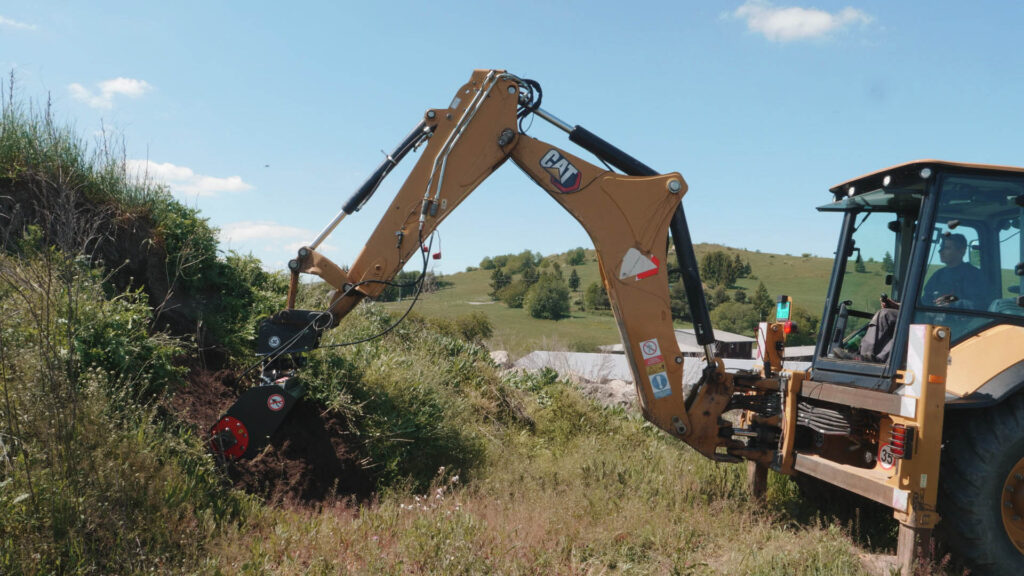

- Hydraulic tilting for slope work
Technical specifications
| Type | SVHT-R2 |
|---|---|
| Base Machine |
|
| Width (mm) | 1,500 |
| Tilt Angle (°) | ±45 |
| Nominal Volume (l) | 320 |
| Required Hydraulic Oil Flow (l/min) | 40 – 80 |
| Required Hydraulic Oil Pressure (bar) | 160 – 210 |
| Weight (kg) | 535 |
| Weight of Base Machine (t) | 7 – 12 |
7 – 12 t
7 – 9.5 t| Type | SVHT-R2 |
|---|---|
| Base Machine |
|
| Width (in) | 59.1 |
| Tilt Angle (°) | ±45 |
| Nominal Volume (US gal) | 84.5 |
| Required Hydraulic Oil Flow (US gal/min) | 10.6 – 21.1 |
| Required Hydraulic Oil Pressure (psi) | 2,321 – 3,046 |
| Weight (lb) | 1,179 |
| Weight of Base Machine (lb) | 15,432 – 26,455 |
* Specifications are subject to change

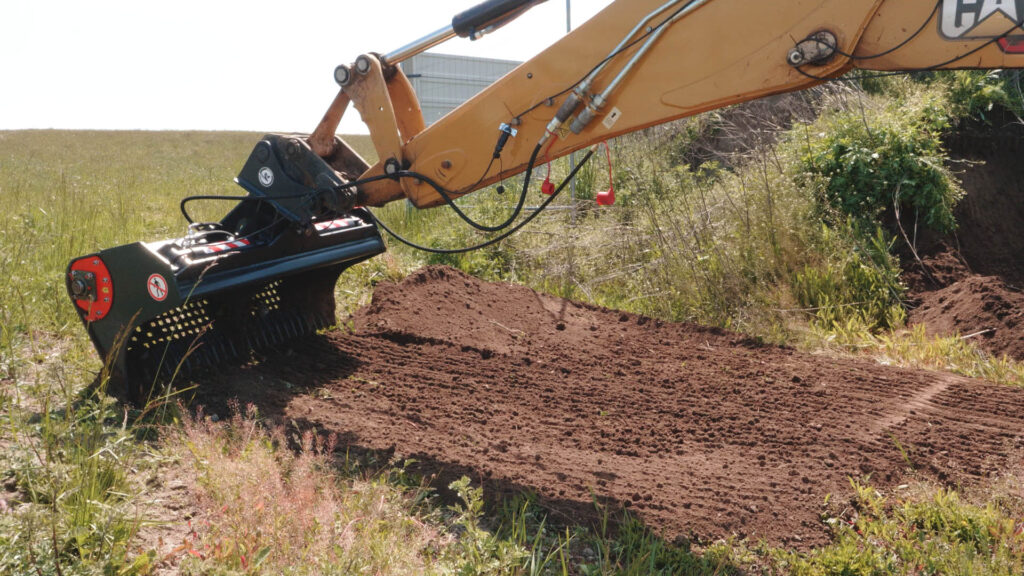

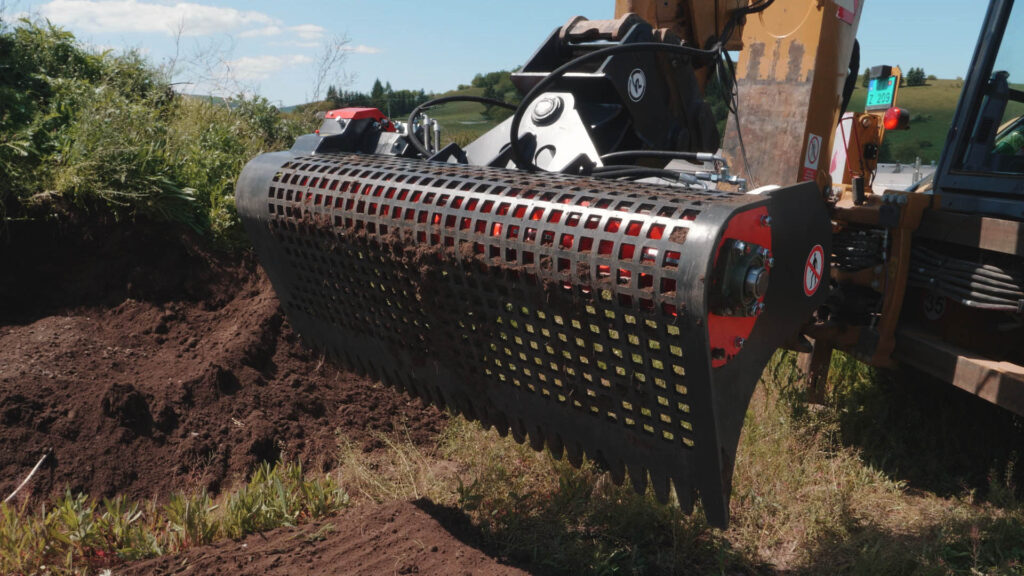

Product photo gallery
